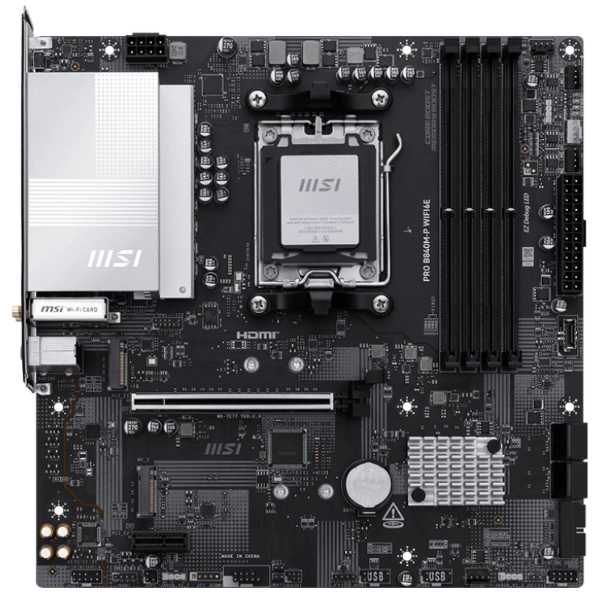

MSI PRO B840M P WIFI6E MOTHERBOARD

MODEL NO: MSI PRO B840M P WIFI6E MOTHERBOARD

Specifications:

CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 series Desktop

Processors

CPU Socket AMD Socket AM5

Chipset AMD B840 Chipset

Expansion Slots 1 x PCIe 4.0 x16 slot

1 x PCIe 3.0 x1 slot

Display Interface Support 4K@60Hz as specified in HDMI™ 2.1

– Requires Processor Graphics

Memory Support 4 DIMMs, Dual Channel DDR5 – 8000+ MT/s (OC)

Storage 2 x M.2 Gen4 x4 64Gbps slots,

4 x SATA 6Gbps ports

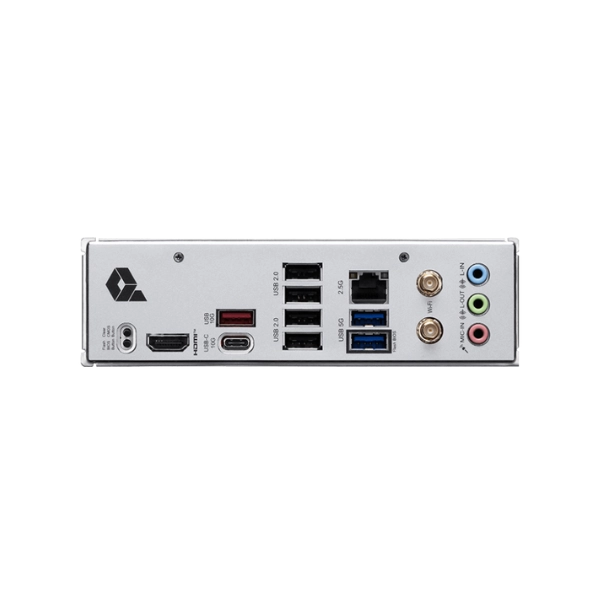

USB Ports 2 x USB 10Gbps (1 Type-A + 1 Type-C),

5 x USB 5Gbps (4 Type-A + 1 Type-C),

8 x USB 2.0

LAN Realtek® 8125 2.5G LAN

WIFI / BT Wi-Fi 6E Solution, Bluetooth 5.3

Audio 8-Channel (7.1) HD Audio with Audio Boost
