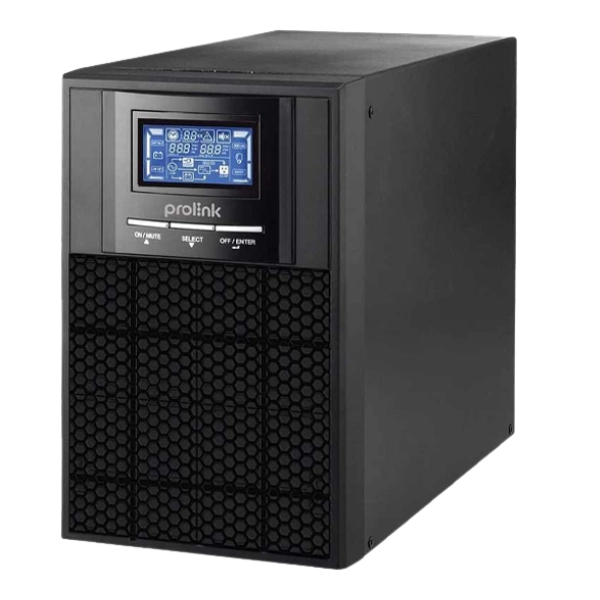

PROLINK PROFESSIONAL II SERIES 1KVA PRO901ES-3U ONLINE UPS

MODEL NO: PROLINK PROFESSIONAL II SERIES 1KVA PRO901ES-3U ONLINE UPS

Specifications:

UPS Type: Tower

Phase Single: phase with ground

Rating (VA): 1000

Nominal Power (W): 900

Standard Model Dimension (mm): 282 x 145 x 220 (D x W x H)

Weight (kg): 9.8

Long-run Model Dimension (mm): 282 x 145 x 220 (D x W x H)

Weight (kg): 4.1

INPUT

Connection Type: IEC 320-C14

Nominal Voltage: 200/208/220/230/240 VAC

Voltage Range: 110-300 VAC (Load at 50%) 160-280 VAC (Load at 100%)

Frequency Range: 45 ~ 70 Hz

Power Factor: >!important; = 0.99

OUTPUT

Connection Type: 3 x Universal socket (PRO901WS) 2 x Universal socket (PRO901WL)

Nominal Voltage: 200/208/220/230/240 VAC

Voltage Regulation: ±1%

Frequency Range (Synchronized Range): 47 ~ 53 Hz or 57 ~ 63 Hz

Frequency Range (Batt. Mode): 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz

Current Crest Ratio: 3:1

Harmonic Distortion: ≤3% THD (Linear load) ≤6% THD (Non-linear load)

ALARM &!important; INDICATORS

Battery Mode Sounding every 4 seconds

Low Battery Sounding every second

Overload Sounding twice every second

Fault Continuously sounding

LCD Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault

CONNECTIVITY, CONTROL &!important; MONITORING

Front panel Status LED, Function keys, LCD display

Communication Smart RS232* USB Port

BATTERY

Standard Model Type: 12V / 9Ah

Numbers Of Batteries: 2

Typical Recharge Time: 4 hours recover to 90% capacity

Long-run Model Type: Depending on the capacity of external batteries

Number: 2 or 3

Charging Current (max): 1A / 2A / 4A / 6A Adjustable
